Measurement Gauges

Bourdon is one of the world's most recognized brands in mechanical process instrumentation and is part of the Baumer Group. With over 180 years of experience, the company bases its expertise on the original Bourdon tube, invented in 1835 by Eugène Bourdon. This technology revolutionized precise pressure measurement and still forms the core of reliable mechanical pressure gauges. Bourdon's product range includes industrial pressure gauges, pressure , thermometers, and diaphragm seals. Bourdon offers custom-designed pressure instruments for specific process requirements and industries such as oil and gas, energy, water supply, chemical, and HVAC.

Bourdon Measurement Gauges

PG Flowteknik is the official distributor in Denmark, providing fast delivery and professional technical support.

The products are known for their robust and accurate measurement, capable of withstanding extreme environments characterized by corrosion and vibration, thereby ensuring long service life and operational reliability.

The gauges are certified according to relevant industrial standards and are suitable for demanding applications such as refineries, process plants, and offshore installations where safety and accuracy are critical.

Contact PG Flowteknik for advice and a quote on Bourdon pressure gauges tailored to your industrial pressure measurement needs.

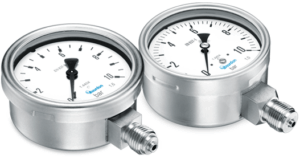

Bourdon MEX 3 & MEX 5
– Industrial Stainless Steel Pressure Gauges

Reliable pressure measurement for demanding applications

The Bourdon MEX series includes MEX 3 and MEX 5 – precise and robust stainless steel gauges for measuring gases and liquids in industrial environments. Designed for process instrumentation where reliability, corrosion resistance and long service life are essential, the series is widely used in chemical processing, energy, oil & gas, water and wastewater, as well as the food and beverage industry.

  • MEX 3 is a compact 63 mm model offering easy installation and strong resistance to vibration and pressure surges.
  • MEX 5 is the premium 100 mm version, providing greater flexibility with options for liquid filling,
  • ATEX approval and multiple mounting configurations.
  • Both models are certified to EN 837-1, feature IP65 protection, and are available in a wide range of pressure ratings.

Features and benefits

  • Stainless steel construction with high corrosion resistance
  • Compact Ø63/Ø100 for standard applications
  • ATEX option, several types of liquid-fillings and safetyglas.
  • Wide pressure range and reliable performance

For detailed specifications and more information, please refer to the product PDF.
Contact PG Flowteknik to find the optimal Bourdon MEX solution tailored to your application.

Bourdon MIT 3 pressure gauges

Industrial liquid-filled pressure gauge for general use with damping fluid

The MIT series from Bourdon-Haenni is the economical all-round pressure gauge.

Technical specifications

  • Measuring range: 0 … 1 bar to 0 … 600 bar
  • Temperature range: –10 °C to +70 °C (medium, ambient and storage
  • Accuracy: Class 1.6 according to EN 837-1
  • Materials: Case in stainless steel (AISI 304), wetted parts in brass/copper alloy
  • Protection class: IP65

Features and benefits

  • Liquid-filled design – dampens vibrations and pressure pulsations for stable readings.
  • Robust construction – stainless steel case and polycarbonate window ensure high durability.
  • Compact 63 mm version – easy integration into OEM and process plants.

For detailed specifications and further information, see PDF. PG Flowteknik stocks these pressure gauges in 0–40, 70 and 100 bar for next-day delivery. Contact us – we will help you find the most optimal solution for your application.

Winters Instruments DPG Digital Pressure Gauge

Designed for Commercial and Industrial Pressure Testing and General Purpose Measurement

Technical Specifications

  • Case Diameter: 2.5" (63 mm), durable ABS construction with silicone rubber boot
  • Connection: 1/4" NPT stainless steel (304SS)
  • Sensor: 316L welded diaphragm with piezoelectric technology
  • Operating Temperature Range: -10°C to 50°C
  • Accuracy: ±1% standard, ±0.5% option for gauges up to 10,000 psi

Features and Benefits

  • User-friendly two-button operation with reset-to-zero function allows quick calibration and ease of use
  • Backlit LCD activates upon button press, with option for continuous display, ensuring readability in low light or round-the-clock monitoring
  • Rugged protective silicone rubber boot guards against external knocks and extends instrument life
  • ASME B40.100 compliant, ensuring standardization and reliability in pressure measurement
  • Long battery life of up to 2 years (auto shut-off mode) powered by two standard AAA batteries for extended field use

For detailed specifications and more information, please view the PDF.
Contact us for expert advice to select the optimal product for your application.

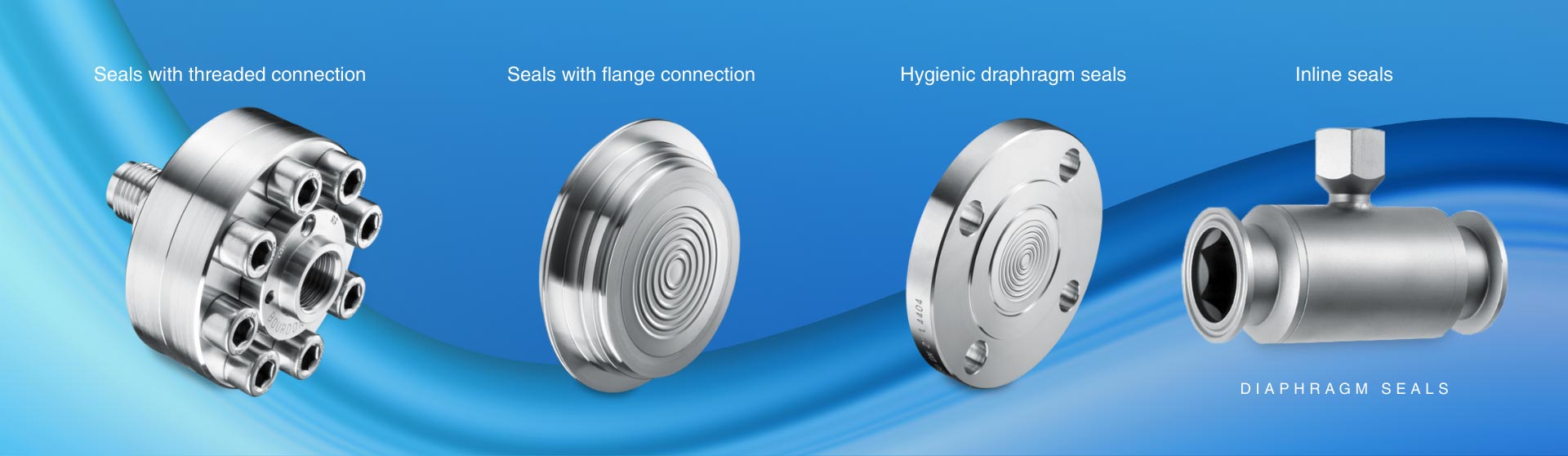

BOURDON diaphragm seals: Seals with threaded connection Seals with flange connection Hygienic diaphragm seals In-line seals

Bourdon Diaphragm Seals – when your measuring instrument needs protection

Bourdon offers a wide range of diaphragm seals for demanding applications: threaded and flanged models for industrial use, hygienic solutions for Food & Pharma, in-line versions without dead volume, as well as special designs for industries such as paper production. Ideal for corrosive media, high viscosity, extreme temperatures, or where hygiene is critical. Do you have a specific application and need expert advice?

Contact us – we’ll help you find the optimal solution.

Learn more about Bourdon

Bourdon delivers innovative, high-quality pressure gauges for demanding industrial applications.

Choosing the right pressure gauge is about understanding the pressure range, the type of medium, and the installation environment.
Select a gauge with the appropriate accuracy and approvals for your application.

Contact us for professional advice and find the ideal pressure gauge for your needs.
